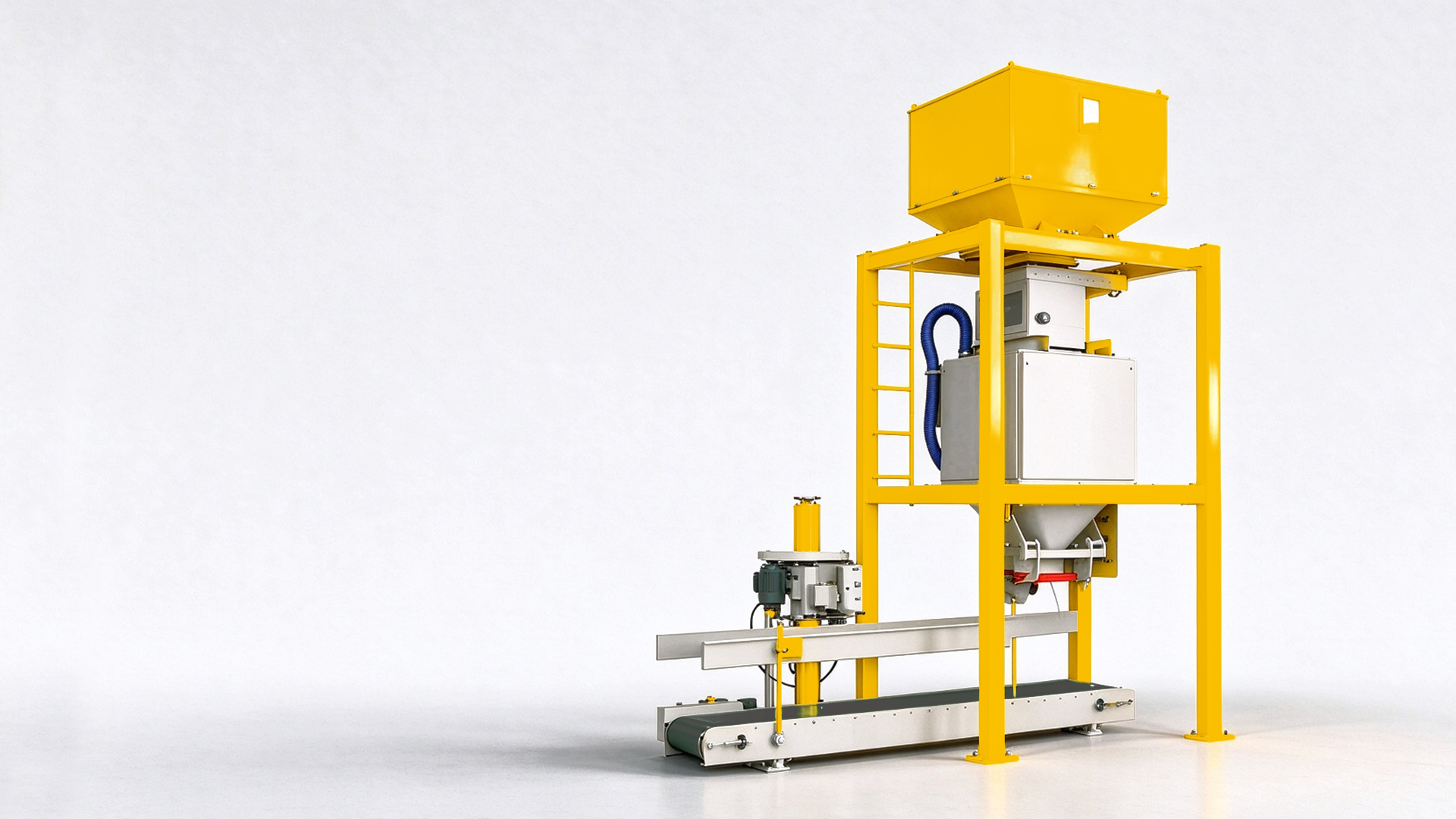

» Bagging Scale

Performance Features

01

Versatile Material Feeding Technologies

Equipped with multiple feed mechanism options—gravity gate feeding for free-flowing grains, 3-speed belt feeding for delicate feed pellets, and horizontal/vertical screw feeding for cohesive or aerated powders—ensuring smooth, non-clogging dosing across all material characteristics.

02

Heavy-Duty Dust-Proof, Airtight & Corrosion-Resistant Engineering

Featuring fully sealed dust-proof hoppers, pneumatic bag-clamping necks with air-expulsion seals, optional full 304/316L stainless steel contact parts, and ATEX/IECEx explosion-proof compliance.

03

Automated Packaging Line Integration & Mobile Design Capability

Seamlessly pairs with automatic bag-feeding machines, sewing/sealing conveyors, robot palletizers, or mobile wheel assemblies (DCS-100-MB) for flexible multi-silo logistics, minimizing manual labor and driving full-process packaging automation.

04

High-Precision Weighing System

Powered by high-resolution digital load cells and fast-sampling weighing terminals, the system delivers Class 0.2 accuracy with automatic target compensation, tare tracking, and anti-vibration digital filtering to eliminate material giveaway and maximize batching efficiency.

FAQ

How do I select the optimal material feeding mechanism (Gravity, Belt, or Screw Feeder) for my bagging line?

Material physical characteristics dictate feeder selection: Gravity feeders excel with free-flowing granules like corn, wheat, and PET pellets; 3-speed belt feeders prevent degradation in delicate feed pellets or flakes; while horizontal/vertical screw feeders are mandatory for cohesive powders, premixes, or aerated material like corn glutenmeal.

What is the primary operational advantage of Double-Hopper (Series II) scales over Single-Hopper (Series I) models?

Double-hopper configurations utilize alternate twin-weighing buckets to double throughput speed—reaching up to 1,000–1,200 bags/hour (e.g., DCS-50II-HF and DCS-100II-MB)—allowing continuous discharge without waiting for batch completion.

Are bagging scales customizable for highly corrosive fertilizers or explosive powder environments?

Yes. We have models featured full stainless steel construction designed specifically for corrosive potassium sulfate or compound fertilizers, while the DCS-50G series offers optional explosion-proof electrical controls and pneumatic components certified for hazardous dust zones.

What is the difference between Net Weight (DCS-1000N) and Gross Weight (DCS-1000G) Jumbo Bag systems?

Net Weight systems pre-weigh material in an overhead buffer hopper before filling the bag, offering higher speeds (30–40 bags/h) for grain and bulk meal; Gross Weight systems weigh the bag directly on the platform during filling, ideal for heavy, dense materials like cement or alumina at 20–40 bags/h.

Engineer your Bagging Scale with GSS

Tell us your request — we will determine the right configuration and send a proposal.
