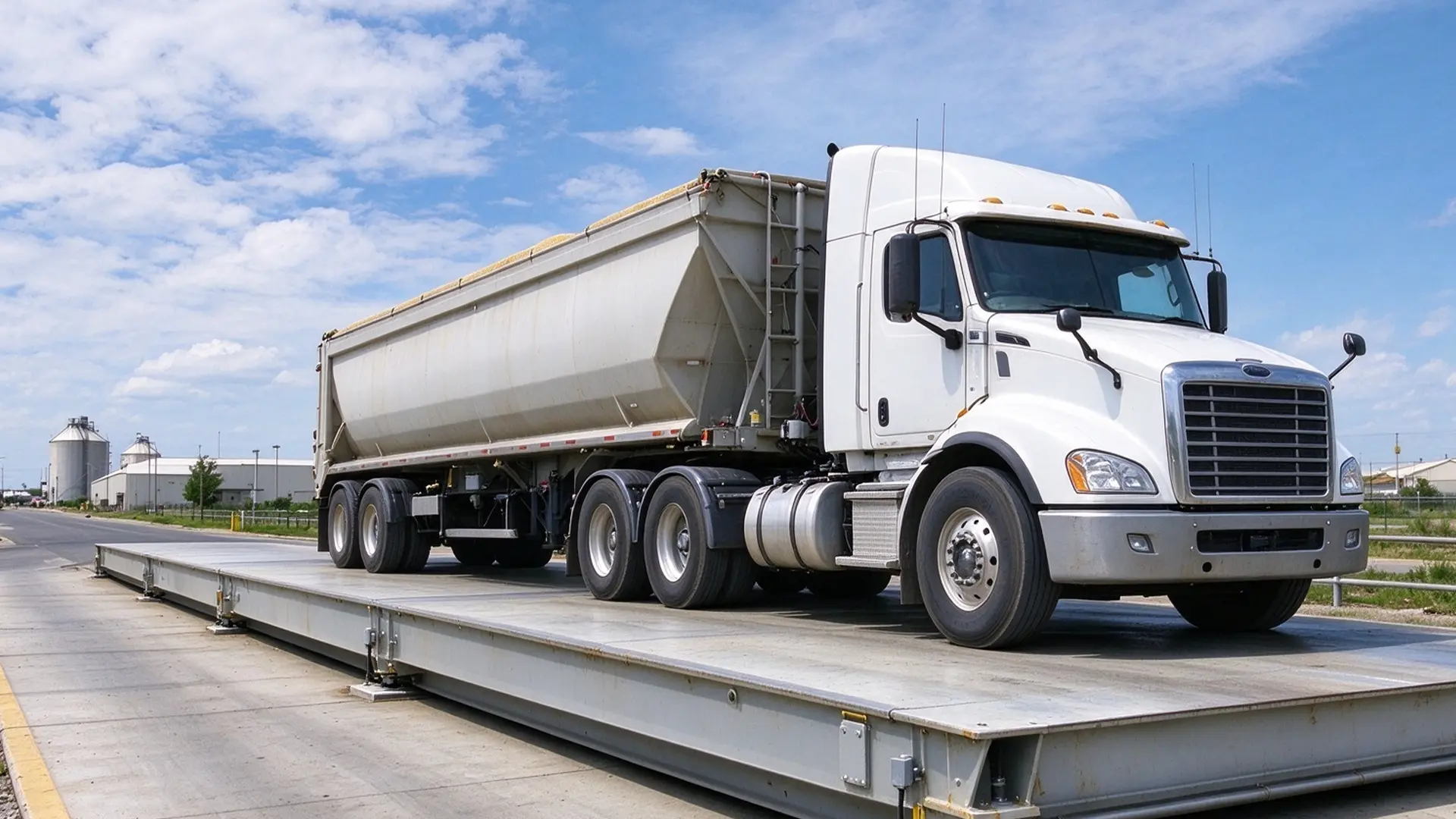

Electronic Truck Scale

High Accuracy & Proven Reliability

Highlights

Maximum weighing capacities from 10 to 200 tons.
Offers customizable platform.
Superior anti-torsion structural strength.
Extreme weather protection.

Performance Features

Orthotropic U-Rib Steel Deck Structure

Constructed with an orthotropic closed-rib U-beam steel deck and fully automated continuous welding, this deck delivers exceptional anti-torsion strength, minimal deformation, and extended service life under heavy load cycles

Advanced Digital POWERCELL PDX Load Cells

Featuring IP68/IP69K laser-welded sealing, built-in microprocessors automatically adjust for temperature, creep, and voltage changes while >80,000A lightning protection and breach diagnostics prevent downtime and fraud.

Intelligent Industrial Indicators & Connectivity

Configured with IND245 or IND880 touchscreen indicators running embedded Windows, offering high-capacity tare memory, robust transaction logging, self-diagnostics, and rich Ethernet/RS232 interfaces for seamless data integration.

Automated & Unattended System Customization

Fully customizable with AVS-AW automatic vehicle weighing systems incorporating RFID recognition, barrier control, and infrared positioning to enable 24/7 unattended operation, increase throughput speed, and stop fraud.

FAQ

What installation foundation options are supported for electronic truck scales?

Weighbridges feature a modular flat deck layout that supports both pitless and shallow pit installation configurations based on spatial conditions and operational needs.

Can truck scale systems be configured for unattended automated weighing?

Yes, truck scales integrate seamlessly with AVS-AW systems, incorporating RFID card readers, surveillance cameras, traffic lights, and barrier gates to perform 24/7 unattended vehicle weighing and traffic management.

How do POWERCELL PDX digital load cells enhance weighing reliability and anti-cheat capabilities?

POWERCELL PDX load cells utilize IP68/IP69K laser welding, helium-filled PCB protection, >80,000A lightning protection, CAN Open encrypted protocol, and enclosure breach alarms to safeguard weighing accuracy and prevent tampering.

How do I select the right truck scale series (1-Series to 4-Series) for my operation?

The 1-Series is designed for low-frequency/light-load applications in food and fine chemicals; the 2-Series handles medium traffic in transport and ports; the 3-Series provides reinforced structural stiffness for heavy mining and coal duties; and the 4-Series is tailored for ultra-heavy axle loads in harsh environments.
