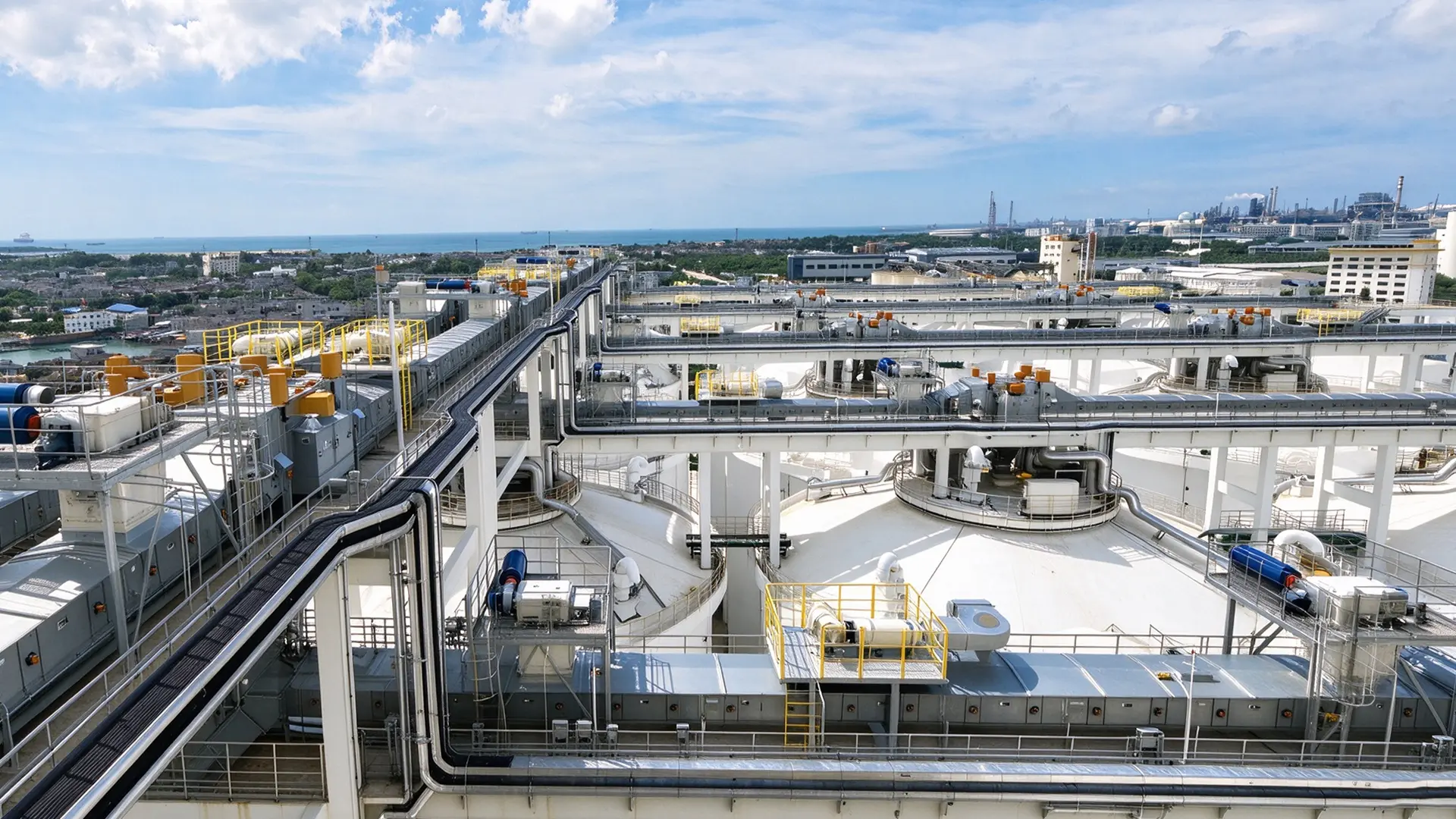

Multi-Discharge Belt Conveyor

Streamlining bulk grain distribution across multi-silo complexes with intelligent, residue-free, and dust-enclosed multi-discharge solutions.

Highlights

Up to 3,000 MTPH+10% maximum bulk grain conveying capacity
≥2% reduction in total grain loss and dust emissions
≥20% savings in overall motor power consumption
10+ years of weather-proof corrosion resistance

Performance Features

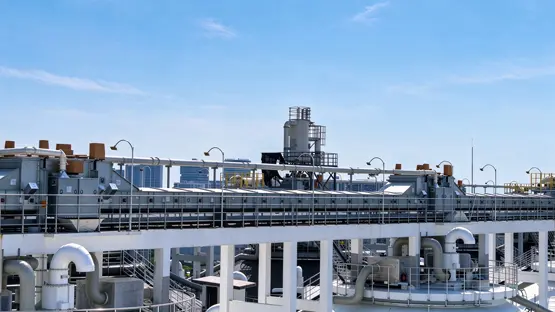

Simplifying Silo Roof Infrastructure and Investment

A single multi-discharge conveyor replaces multiple traditional conveyors and transfer chutes, significantly reducing drive units, valve gates, and civil steel structures to maximize roof space.

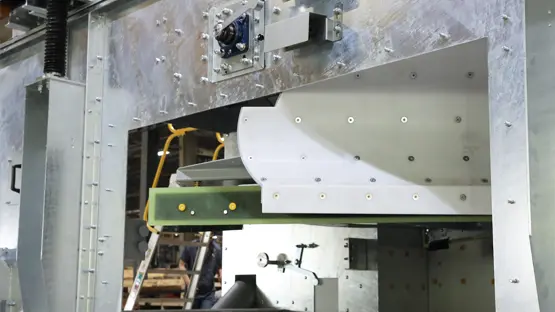

Zero Belt Damage with Variable Troughing Plows

Features a food-grade variable troughing combo-plow that flattens the belt gently during discharge without forced pressing, maintaining zero residue while dramatically extending conveyor belt service life.

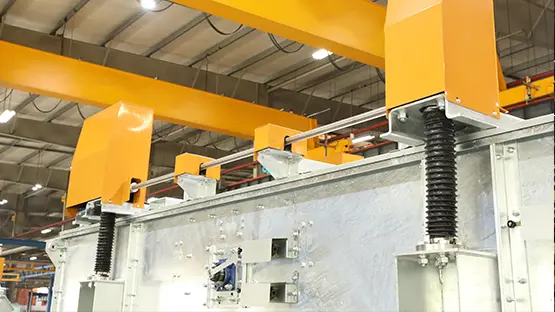

Automated Discharging for Smart Granary Management

Electric or pneumatic actuators drive plow blades with limit signals wired to central control, allowing operators to switch discharge silos remotely for automated rotation and grade-segregated storage.

Energy-Efficient Operation with Air-Supported Return

Combines a full-length air-supported return section with a dust-tight enclosure, drastically cutting friction resistance, motor power demands, and workplace environmental hazards.

Applications

Automated Bulk Material Handling & Green Storage System...

Sinograin is building a strategic dual-complex grain hub in Hainan Free Trade Port to handle imported grain receipt, bonded transit...

Read Case →

Smart Grain Handling & Storage System | Zhongshan...

Zhongshan Central Grain Reserve Phase III is a key livelihood project in Guangdong and a flagship grain reserve base for...

Read Case →

FAQ

What are the primary cost advantages of a multi-discharge conveyor over multiple single-point conveyors?

A single multi-discharge conveyor eliminates redundant drives, head/tail pulleys, transfer chutes, and valve gates. This simplifies roof steel structures, lowers initial capital investment, and reduces ongoing maintenance and spare parts inventory.

Does the plow discharger cause severe wear on the conveyor belt?

No. It uses a food-grade variable troughing combo-plow. When discharging, the belt is flattened gently with precise clearance without forced friction, keeping belt wear minimal under regular maintenance.

How does the system integrate with automated smart granary management?

Electric or pneumatic actuators drive the plow blades with status signals wired directly to the central PLC controller. Operators can remotely switch discharge silos and execute automated rotation or grade-segregated storage without manual site work.

How does the design handle residual grain and prevent pest or mold contamination?

The food-grade compliant combo-plow design ensures clean discharge with zero material residue inside the chamber. Built-in inspection sight glasses and quick-opening doors facilitate easy routine checks and thorough cleaning during variety changeovers.
