Up-Load™ Drag Conveyor

Space-Saving, Multi-Directional Heavy-Duty Bulk Handling

Highlights

Ideal for space-restricted bulk material handling sites
Heavy-duty with direction change
Single unit completes horizontal, curved and vertical conveying
Suitable for mining, chemical, grain and energy industries

Performance Features

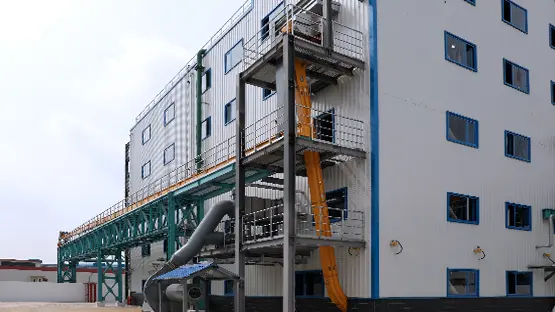

Superior Layout Flexibility

Specifically engineered for space-constrained installations requiring directional changes or elevation adjustments. A single conveyor performs turning, elevating, horizontal, and vertical routing, without multiple transfer points and extra equipment.

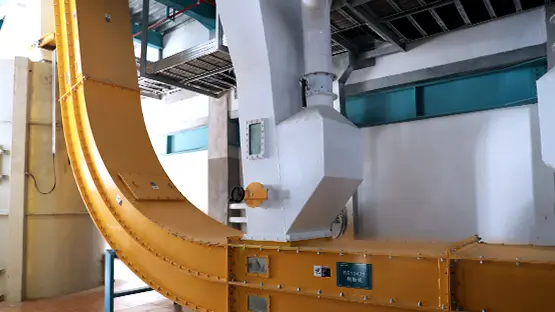

Smooth Transition

The curved section features a large-radius arc housing together with a specialized guide structure. This optimized curve radius ensures consistent running resistance and a smooth chain path, completely preventing material accumulation, plugging, or back-feeding.

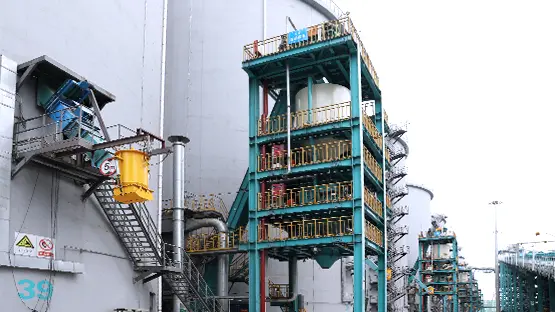

Industrial-Grade Reliability

Designed for 24/7 high-load operating conditions. By utilizing a high-strength welded offset sidebar chain as the core traction component, it provides exceptional fatigue resistance and operational stability, keeping your continuous production lines running without costly downtime.

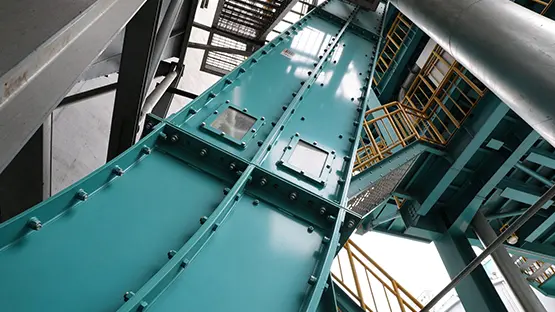

Clean & Green Operation

The fullly enclosed structure is inherently dust-tight, making it an eco-friendly option for handling fine, dusty, or sensitive bulk materials. It balances the strict requirements of modern environmental compliance with the preservation of material integrity.

Applications

Preferred Conveying Solution for Confined Industrial Spaces

High-Capacity Drying & Handling System | Yihai Kerry...

Yihai Kerry’s flagship intelligent rice processing base in East China features an annual output of 700,000 tons and a daily...

Read Case →

Wilmar Indonesia Soybean & Palm Kernel Pressing Base...

PT. Wilmar Nabati Indonesia, a core port-side processing base of Wilmar Group in Southeast Asia, required high-capacity, fully enclosed and...

Read Case →

Silo Discharge & Truck Loading System for 500k-Ton...

GSS deployed a full automated conveying system for North China’s largest soybean import hub, a CNY 1.44 billion grain logistics...

Read Case →

FAQ

Will the chain or material jam or accumulate during the curved directional change?

No. The curved transition section utilizes a large-radius arc casing paired with a specialized guide structure. This allows the scraper chain to transition smoothly along the arc with uniform running resistance, removing sharp jam prone points. Furthermore, the curve radius is engineered and optimized to ensure materials flow effortlessly with the chain, preventing any accumulation, plugging, or back-feeding. During selection, we match the optimal curve radius and chain speed to your specific material properties (particle size, moisture, flowability) to ensure absolute reliability.

What is the maximum conveying angle and distance? Can the curve angle be customized?

Yes, the Up-Load Drag Conveyors support fully customized bend angles and layout plans. Typically, the incline section angle can reach 30° to 75° (depending on material characteristics and friction coefficients). With special engineering, even larger angles or vertical lifting can be achieved. Conveying distance is also customized based on your process line length, covering everything from small to large-scale operations. We recommend providing your material parameters, capacity, spatial layout, and routing needs so our team can perform specialized calculations for a precise equipment match.

Is the equipment fully sealed to prevent dust and environmental pollution?

Absolutely. A key benefit of Up-Load Drag Conveyor is its fully enclosed structure. This design provides eco-friendly, dust-tight conveying that balances both strict environmental compliance and the protection of your material quality, making it ideal for the chemical, mining, and food processing industries.
