From Harvest to Silo: Improving Grain Quality with Continuous Mix-Flow Process Dryers

For grain processing, from harvesting, transport, drying, to final silo storage is a high-stakes race against moisture and time. Among these post-harvest stages, grain drying plays the most critical role in defining grain quality, seed viability, and long-term storage stability.

During peak summer harvest seasons, high moisture content (MC), massive daily throughput requirements, and unpredictable weather windows place severe demands on equipment reliability, thermal precision, and operating continuity. Modern commercial grain processing centers require robust drying systems capable of continuous 24/7 operation without compromising crop quality.

To address these operational challenges, GSS provides continuous mix-flow process dryers and solution tailored for large-scale farms, agricultural cooperatives, and commercial grain depots.

Low-Temperature Outside Tempering Protects Grain Quality

GSS Continuous Mix-Flow Process Dryers utilize low-temperature, high-airflow mixed-flow technology, directing hot air through the grain layer from multiple directions – top, bottom, left, and right. As grain flows through the dryer, it alternates between heating zones and tempering zones—first heated by thermal airflow, then entering a tempering pass where internal moisture diffuses evenly to the surface. This gentle, alternating process ensures uniform heating and smooth moisture release, effectively eliminating heat damage, stress cracking (fissuring), and kernel breakage.

Multi-Crop Versatility:

Capable of handling a wide array of summer harvest staples—including wheat, paddy rice, rapeseed, and corn—the system offers comprehensive multi-crop drying adaptability.

Outstanding Performance Metrics:

Paddy Rice: When reducing moisture by up to 5%, the fissure ratio increase (crack rate) is kept within 3%, and the breakage rate increase is controlled under 0.3%.

Wheat: Under low-temp drying conditions, the wet gluten reduction is ≤0.5%, with final gluten levels remaining at or above the initial intake values.

By ensuring safe and continuous post-harvest preservation, the system delivers high processing yields while reliably safeguarding grain quality.

24/7 Continuous Operation

GSS mix-flow process dryers support 24/7 continuous operation with a maximum daily processing capacity of 2,400 metric tons per unit, easily handling the challenges of peak seasonal drying demands, enabling continuous equipment uptime during operator shift changes.

The moisture reduction range is fully adjustable. Grain achieves its target moisture reduction in a single continuous pass from intake to discharge, eliminating the need for intermediate bin transfers.

The anti-breakage six-impeller discharge mechanism and variable-cross-section angular air ducts ensure hot air reaches every single grain particle without dead zones.

Smart Control Enables High Efficiency and Reliability

The entire machine is equipped with a fully automated PLC control system, enabling one-touch adjustment of air temperature, grain temperature, and discharge speed. It provides comprehensive protection—including real-time monitoring and fault alarms— for continuous operations.

Variable-Frequency Discharge: The discharge speed supports stepless variable-frequency adjustment from 50% to 200%.

Precision Moisture Control: Paired with an in-line moisture monitoring module, the system enables on-demand drying, effectively preventing fuel and energy waste caused by over-drying.

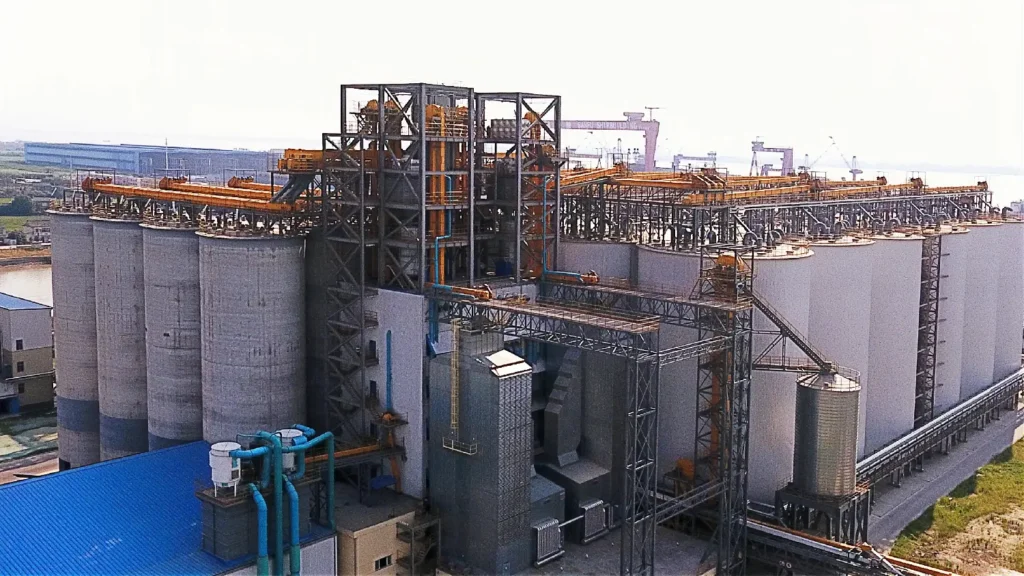

A Reference Project: 800 MT/D Continuous Mix-Flow Drying Line

This project is a newly constructed drying center in Jiangsu, which is equipped with an 800 metric tons per day continuous mixed-flow process dryer, with reserved technical interfaces for batch dryers to facilitate process switching for seasonal paddy re-drying.

Key Engineering Highlights:

• Redundant Dual Intake Lines: If a bucket elevator on one side encounters downtime, the opposite side acts as an emergency standby, significantly enhancing system redundancy.
• Air-Aspiration Separator: Configured with an air-aspiration separator at the discharge outlet to further remove light impurities.
• Temperature-Ventilation Interlock: Integrated temperature monitoring interlocks with the ventilation system to automatically activate cooling fans when grain temperatures exceed safety thresholds, ensuring long-term storage safety.
• Low-Depth Pit with Dual En-Masse Conveyors: Dual En-Masse conveyors arranged beneath the intake pit lower civil construction depth while functioning as mutual backups.
• Three-Tier Impurity Removal: A combined rotary-vibrating screen works in tandem with air-aspiration separators to perform three-stage cleaning—removing large, fine, and light impurities.
• Reduced Cost: Dynamic metering scales are positioned above the belt conveyor gallery, eliminating additional structural supports and reducing structural steel CAPEX.
• Bi-Directional Handling & Pneumatic Discharge: Silo-bottom pneumatic gates paired with bi-directional belt conveyors allow grain to be routed back to the dryer for re-drying, or loaded onto trucks for dispatch to flat warehouses.

The overall operational layout—”Continuous Drying, Intermediate Tempering, Flexible Dispatch”—accommodates the distinct physical properties of both paddy and wheat while reserving ample space for future capacity expansion.

Conclusion: Master Post-Harvest Grain Drying with GSS Systems

The summer harvest is a race against unpredictable weather, making grain drying a critical test of engineering reliability and operational control. GSS Continuous Mix-Flow Process Dryers offer an intelligent, high-capacity solution for commercial agriculture.

By integrating multi-directional low-temperature tempering, high efficiency, and precise quality preservation, GSS delivers dependable 24/7 performance across large-scale, multi-crop, and high-standard grain processing operations.
