» Commercial Series En-masse Conveyor

Performance Features

01

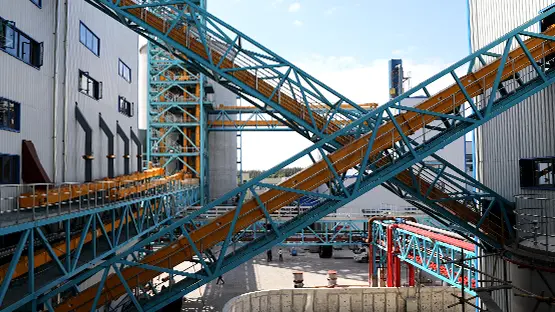

Heavy-Duty Industrial Grade

Engineered for 24/7 heavy-duty bulk handling, the Commercial Series En-Masse Conveyor provides highly efficient, continuous conveying with low maintenance . Powered by a heavy-duty welded offset sidebar chain inside a dust-tight housing, this versatile system safely conveys powdered, granular, and lumpy materials for the grain, chemical, mining, and energy sectors.

02

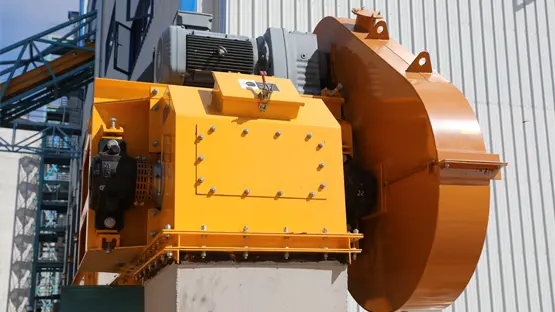

Head Section

Heavy-Duty Bearings & Shaft: Spherical roller bearings paired with quenched and tempered 40Cr head shaft offer superior load bearing capacity and extended service life.
Durable Drive Components: Hardened split sprocket delivers outstanding durability; the oil bath housing enables leak proof lubrication.
Superior Sealing & Access: Premium shaft packing seals prevent material leakage; quick access inspection doors simplify routine servicing.

03

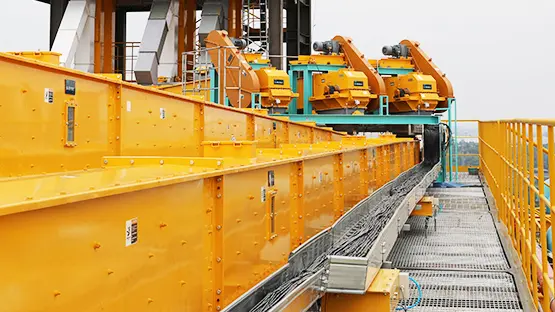

Trough Section

High-Strength Construction: Ridge top covers ensure structural rigidity, while countersunk bolted bottom panels allow for quick and easy replacement.
Maximum Wear Resistance: Guide rails and side panels are equipped with NM400 abrasion-resistant steel liners to maximize service life.
Smooth & Quiet Operation: The GSS’s patented design ensures seamless transition, reducing wear and noise, together with hardened heavy duty chains

04

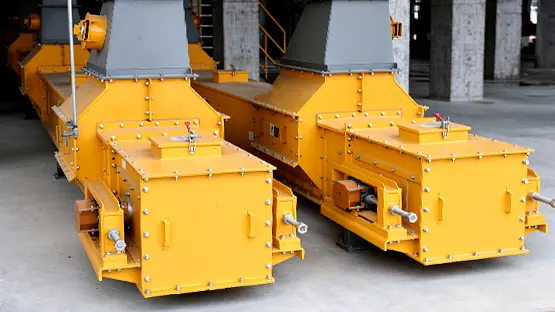

Tail Section & Options

Advanced Tensioning: Integrated Take-Up pillow block bearings and a hardened tail shaft ensure exceptional sealing and reliable tension control.
Anti-Accumulation Design: Tail winged pulleys minimize residue and kernel damage, effectively safeguarding material quality.
Customizable Options: Optional standard welded chains, stall/plugging sensors, dust collection vents, and extra inspection doors.

Applications

Engineered for Versatile Industrial & Agricultural Bulk Handling

1000 t/h Bulk Grain Conveying System: Empowering River-Sea...

A major East China port terminal along the Yangtze River (a 100,000-ton grain berth constructed by CCCC-) urgently needed to...

Read Case →

Bulk Grain Conveying System | Yihai Kerry (Wilmar...

GSS delivered a full automated bulk grain conveying system for Yihai Kerry (Wilmar Group)’s East China grain and oil base....

Read Case →

GSS Conveying System for Yangtze River 10Mt Grain...

GSS provided a full automated bulk grain conveying system for COFCO Group’s national grain logistics hub on the Yangtze River....

Read Case →

FAQ

What are the advantages of the welded offset sidebar chain, and is it suitable for heavy-duty applications?

The welded offset sidebar chain adopts one piece bending and welding construction, removing structural weaknesses found in riveted or stamped type chains. It offers significantly higher tensile strength, impact resistance, and wear resistance. Compared to standard stamped chains, it delivers superior fatigue life and reliability in heavy-duty, long-distance, and continuous (24/7) operations without issues like broken plates or detached pins. It is the ideal choice for massive capacity industrial working conditions.

How is the corrosion resistance of the equipment? Can it be used outdoors or in corrosive environments?

Yes. The Commercial Series housing undergoes professional anti-corrosion treatment, offering options like carbon steel anti-corrosive coating or stainless steel construction depending on your needs. It is highly resistant to moisture, salt spray, and mild corrosive gases, allowing direct deployment outdoors or in mildly corrosive workshops. For highly corrosive environments (e.g., strong acid/alkali dust or coastal high-salt areas), custom stainless steel housings or premium special coating solutions are available for stable long term operation.

How does the trough section minimize wear and operational noise?

Guide rails and side panels inside the trough are protected by heavy duty NM400 wear resistant steel liners. More importantly, it utilizes GSS's patented guide rail design featuring a specialized overlapping structure. This ensures an exceptionally smooth transition for the chain, which vastly reduces dragging friction, operational noise, and wear on the chain flights.

Engineer your En-masse Conveyor with GSS

Tell us your capacity, length and material — we will scope the right configuration and send a proposal.
